Catalina Door Handle by Designer Doorware

Updated: Aug 26, 2022



Designer Doorware designs and manufactures superior quality door handle furniture and architectural door hardware including door handles and knobs.


The Catalina door handle by Designer Doorware offers an elegant, modern and clean-cut design. As a whole, the Catalina lever door handle mounted on a round backplate provides a distinguishing, aesthetic comfort with its soft lines.


Their door handle products offer timeless qualities to suit a variety of architectural styles and budgets, with thousands of product options and combinations to choose from.


Designer Doorware offers a range of door handle finishes to suit your desires.


With Designer Doorware you can access a complete architectural hardware solution, without any need to be concerned by the technical complexities that can cause headaches!


Visit our Architectural Design Hardware showroom today and experience the Designer Doorware range.



Catalina by Designer Doorware Collection



Catalina on Round Rose


An elegant, modern and clean-cut design, the Catalina lever door handle mounted on a round backplate provides a distinguishing, aesthetic comfort with its soft lines.

Product Code: CA-R10

Material: Brass

Dimensions: Overall h53 x w134.5 x d62 mm (see line drawing download)

Fixing: Through bolt fixing, fully concealed. Self adjusting spindle 7.6mm to 8mm. Fits any lock or latch.


Product Code Description

  1. Full set CA-R10

  2. Full set inc latch 60mm backset CA-R10-TL60

  3. Full privacy set inc latch bolt 60mm backset CA-R12-TC60

  4. Half set external CA-R10-E

  5. Half set internal CA-R10-I

  6. Fixed full set CA-R10-F

  7. Fixed half set external CA-R10-EF

  8. Fixed half set internal CA-R10-IF





Catalina on Square Rose


An elegant, modern and clean-cut design, the Catalina lever door handle mounted on square backplate provides a distinguishing, aesthetic comfort with its soft lines.

Product Code: CA-R50

Material: Brass

Dimensions: Overall h53 x w134.5 x d62 mm (see line drawing download)

Fixing: Through bolt fixing, fully concealed. Self adjusting spindle 7.6mm to 8mm. Fits any lock or latch.


Product Code Description

  1. Full set CA-R50

  2. Full set inc. latch 60mm backset CA-R50-TL60

  3. Full privacy set inc. latch bolt 60mm backset CA-R52-TC61

  4. Half set external CA-R50-E

  5. Half set internal CA-R50-I

  6. Fixed full set CA-R50-F

  7. Fixed half set external CA-R50-EF

  8. Fixed half set internal CA-R50-IF

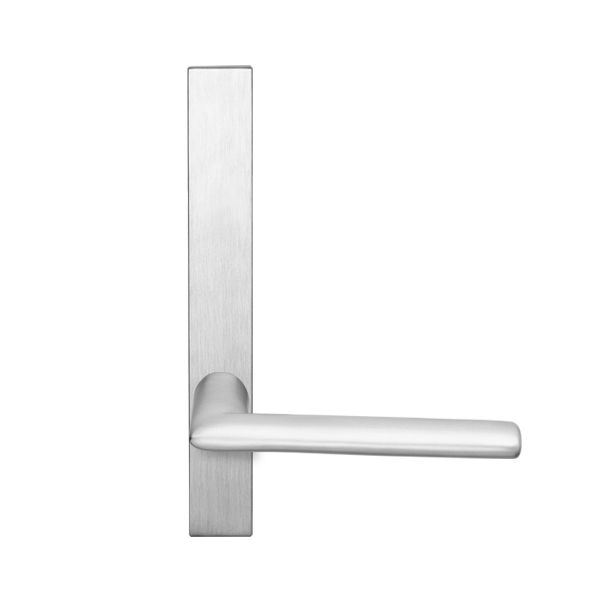

Catalina on Aust. narrow stile plates 50 series


An elegant, modern and clean-cut design, the Catalina lever door handle mounted on a slimline backplate, provides a distinguishing, aesthetic comfort with its soft lines. This slimline, rectangular plate is ideally suited to narrow stile Australian locks for aluminium doors.

Product Code: CA-PS50

Material: Brass

Dimensions: Overall h183 x w120.5 x d64 mm (see line drawing download)

Fixing: Through bolt fixing, fully concealed. Self adjusting spindle 7.6mm to 8mm. Fits any lock or latch.


Product Code Description

  1. Plain external CA-PS50-E

  2. Plain internal CA-PS50-I

  3. Pinch turn snib 90mm ctc internal CA-PS51PN-I

  4. Quad turn snib 90mm ctc internal CA-PS51QN-I

  5. Quad emerg release 90mm ctc external CA-PS52QN-E

  6. Round emerg release 90mm ctc external CA-PS52RN-E

  7. Oval cylinder hole 90mm ctc external CA-PS54N-E

  8. Oval cylinder hole 90mm ctc internal CA-PS54N-I


Catalina on Euro narrow stile plates 60 series


An elegant, modern and clean-cut design, the Catalina lever door handle mounted on a slimline, Oval, contemporary backplate gives an added feature to your door. This plate works with Euro and Australian locks.

Product Code: CA-PR60

Dimensions: Overall h250 x w120.5 x d64 mm


Product Code Description

  1. Plain external CA-PR60-E

  2. Plain internal CA-PR60-I

  3. Quad turn snib 85mm ctc internal CA-PR61QL-I

  4. Pinch turn snib 85mm ctc internal CA-PR61PL-I

  5. Quad emerg release 85mm ctc external CA-PR62QL-E

  6. Round emerg release 85mm ctc external CA-PR62RL-E

  7. Euro. cylinder hole 85mm ctc external CA-PR63L-E

  8. Euro. cylinder hole 85mm ctc internal CA-PR63L-I

  9. Euro. Cylinder hole 47.5mm ctc external CA-PR63S-E

  10. Euro. Cylinder hole 47.5mm ctc internal CA-PR63S-I

  11. Oval cylinder hole 64mm ctc external CA-PR64W-E

  12. Oval cylinder hole 64mm ctc internal CA-PR64W-I


Catalina on Euro narrow stile plates 60 series


An elegant, modern and clean-cut design, the Catalina lever door handle mounted on a slimline, rectangular, contemporary backplate gives an added feature to your door. This plate works with Euro and Australian locks.

Product Code: CA-PS60

Material: Brass

Dimensions: Overall h250 x w120.5 x d64 mm (see line drawing download)

Fixing: Through bolt fixing, fully concealed. Self adjusting spindle 7.6mm to 8mm. Fits any lock or latch.


Product Code Description

  1. Plain external CA-PS60-E

  2. Plain internal CA-PS60-I

  3. Quad turn snib 64mm ctc internal CA-PS61OW-I

  4. Quad turn snib 85mm ctc internal CA-PS61QL-I

  5. Pinch turn snib 85mm ctc internal CA-PS61PL-I

  6. Quad emerg release 85mm ctc external CA-PS62QL-E

  7. Round emerg release 85mm ctc external CA-PS62RL-E

  8. Euro. cylinder hole 85mm ctc external CA-PS63L-E

  9. Euro. cylinder hole 85mm ctc internal CA-PS63L-I

  10. Euro. Cylinder hole 47.5mm ctc external CA-PS63S-E

  11. Euro. Cylinder hole 47.5mm ctc internal CA-PS63S-I

  12. Oval cylinder hole 64mm ctc external CA-PS64W-E

  13. Oval cylinder hole 64mm ctc internal CA-PS64W-I



Catalina on Euro plates 80 series


An elegant, modern and clean-cut design, the Catalina lever door handle, provides a distinguishing aesthetic comfort with its soft lines. Mounted on a traditional, oval, bevelled plate that offers a traditional touch to classic design settings.

Product Code: CA-PR80

Material: Brass

Dimensions: Overall h250 x w129 x d62 mm (see line drawing download)

Fixing: Through bolt fixing, fully concealed. Self adjusting spindle 7.6mm to 8mm. Fits any lock or latch.


Product Code Description

  1. Plain CA-PR80

  2. Oval turn snib 85mm ctc CA-PR81OL

  3. Pinch turn snib 85mm ctc CA-PR81PL

  4. Round emerg release 85mm ctc CA-PR82RL

  5. Euro. cylinder hole 85mm ctc CA-PR83L

  6. Oval turn snib & Euro. cylinder hole 85mm ctc CA-PR83OLT

  7. Euro. Cylinder hole 47.5mm ctc CA-PR83S

  8. Oval cylinder hole 64mm ctc CA-PR84W

  9. Oval turn snib 64mm ctc CA-PR81OW

  10. Pinch snib 64mm ctc CA-PR81PW

  11. Round emerg release 64mm ctc CA-PR82RW



Catalina on Euro/American door plates 100 series


An elegant, modern and clean-cut design, the Catalina lever door handle mounted on a bold rectangular feature plate, provides a distinguishing, aesthetic comfort with its soft lines. This backplate creates a stunning impression and suits Euro, American and Australian locks.

Product Code: CA-PS100

Material: Brass

Dimensions: Overall h250 x w133 x d64 mm (see line drawing download)

Fixing: Through bolt fixing, fully concealed. Self adjusting spindle 7.6mm to 8mm. Fits any lock or latch.


Product Code Description

  1. Plain external CA-PS100-E

  2. Plain internal CA-PS100-I

  3. Oval turn snib 85mm ctc internal CA-PS101OL-I

  4. Pinch turn snib 85mm ctc internal CA-PS101PL-I

  5. Quad turn snib 85mm ctc internal CA-PS101QL-I

  6. Square emerg release 85mm ctc external CA-PS102QL-E

  7. Round emerg release 85mm ctc external CA-PS102RL-E

  8. Euro. cylinder hole 85mm ctc external CA-PS103L-E

  9. Euro. cylinder hole 85mm ctc internal CA-PS103L-I

  10. Oval turn snib & Euro cylinder hole 85mm ctc internal CA-PS103OLT-I

  11. Euro. cylinder hole 47.5mm ctc external CA-PS103S-E

  12. Euro. cylinder hole 47.5mm ctc internal CA-PS103S-I

  13. Oval cylinder hole 64mm ctc external CA-PS104W-E

  14. Oval cylinder hole 64mm ctc internal CA-PS104W-I

  15. Oval turn snib 64mm ctc internal CA-PS101OW-I

  16. Pinch turn snib 64mm ctc internal CA-PS101PW-I

  17. Quad turn snib 64mm ctc internal CA-PS101QW-I

  18. Quad emerg release 64mm ctc external CA-PS102QW-E

  19. Round emerg release 64mm ctc external CA-PS102RW-EA




Catalina on oval window rose


An elegant, modern and clean-cut design, the Catalina lever door handle mounted on an oval rose offers a simple yet effective feature in contemporary and classic interiors.

Product Code: CA-R15

Dimensions: Overall h139 x w30 x d60 mm



Catalina on rectangular window rose


An elegant, modern and clean-cut design, the Catalina lever door handle mounted on a rectangular backplate provides a distinguishing, aesthetic comfort with its soft lines.

Product Code: CA-R55

Dimensions: Overall h139 x w30 x d60 mm






Catalina on 63mm DIA Round Rose

An elegant, modern and clean-cut design, the Catalina lever door handle provides a distinguishing, aesthetic comfort with its soft lines. The 63mm ø round rose has been specifically designed to suit doors with a 54mm ø hole.

Product Code: CA-R20

Material: Brass

Dimensions: Overall h63.5 x w139.5 x d62

Fixing: Through bolt fixing, fully concealed. Self adjusting spindle 7.6mm to 8mm. Fits any lock or latch.


Product Code Description

  1. Full set CA-R20

  2. Full set inc latch 60mm backset CA-R20-TL60

  3. Full privacy set inc latch bolt 60mm backset CA-R22-TC60

  4. Half set external CA-R20-E

  5. Fixed half set external CA-R20-EF

  6. Fixed full set CA-R20-F

  7. Half set internal CA-R20-I

  8. Fixed half set internal CA-R20-IF



Catalina on 63mm Square Rose


An elegant, modern and clean-cut design, the Catalina lever door handle provides a distinguishing, aesthetic comfort with its soft lines. The 63mm square rose plate has been specifically designed to suit doors with a 54mm ø hole.

Product Code: CA-R70

Material: Brass

Dimensions: Overall h63.5 x w139.5 x d62

Fixing: Through bolt fixing, fully concealed. Self adjusting spindle 7.6mm to 8mm. Fits any lock or latch.


Product Code Description

  1. Full set CA-R70

  2. Full set inc latch 60mm backset CA-R70-TL60

  3. Full privacy set inc latch bolt 60mm backset CA-R72-TC61

  4. Half set external CA-R70-E

  5. Fixed half set external CA-R70-EF

  6. Fixed full set CA-R70-F

  7. Half set internal CA-R70-I

  8. Fixed half set internal CA-R70-IF




View more Designer Doorware Products on our website here




Architectural Design Hardware is Australia's best supplier and retailer of quality door hardware. Products like door handles, door locks, entrance sets, key security products and more.


We ship our products International and Australia wide. We supply Italian, European, Australian and many known brands. Including Lockwood, Gainsborough, Austyle, Tradco, and so much more!


We offer Italian (Valli&Valli, Mandelli, Manital, Olivari, Colombo and more). Also many European (dnd Martineli, Bellevue, Formani and more) door handles. Including Turnstyle, Zodiac, Designer Doorware, Bouvet, and Chant door handles.


Check out our collections today. There are many many door handles for you to chose from. Door handles should never be a last minute decision. That is why we offer our showroom for consultation and scheduling.


Door handles are an influential aspect of the home. At Architectural Design Hardware we offer you something outstanding. Very functional, and individual for your desires and décor.


We offer all styles, from modern to the more traditional, classical look. Door handles have a huge impact on the character of your home, and will have a lasting effect.


Choose the perfect door handles for your home. Our experienced consultants can offer advice. You decide on the most appropriate choices and finishes.


If you have any questions please contact us today at Architectural Design Hardware.
